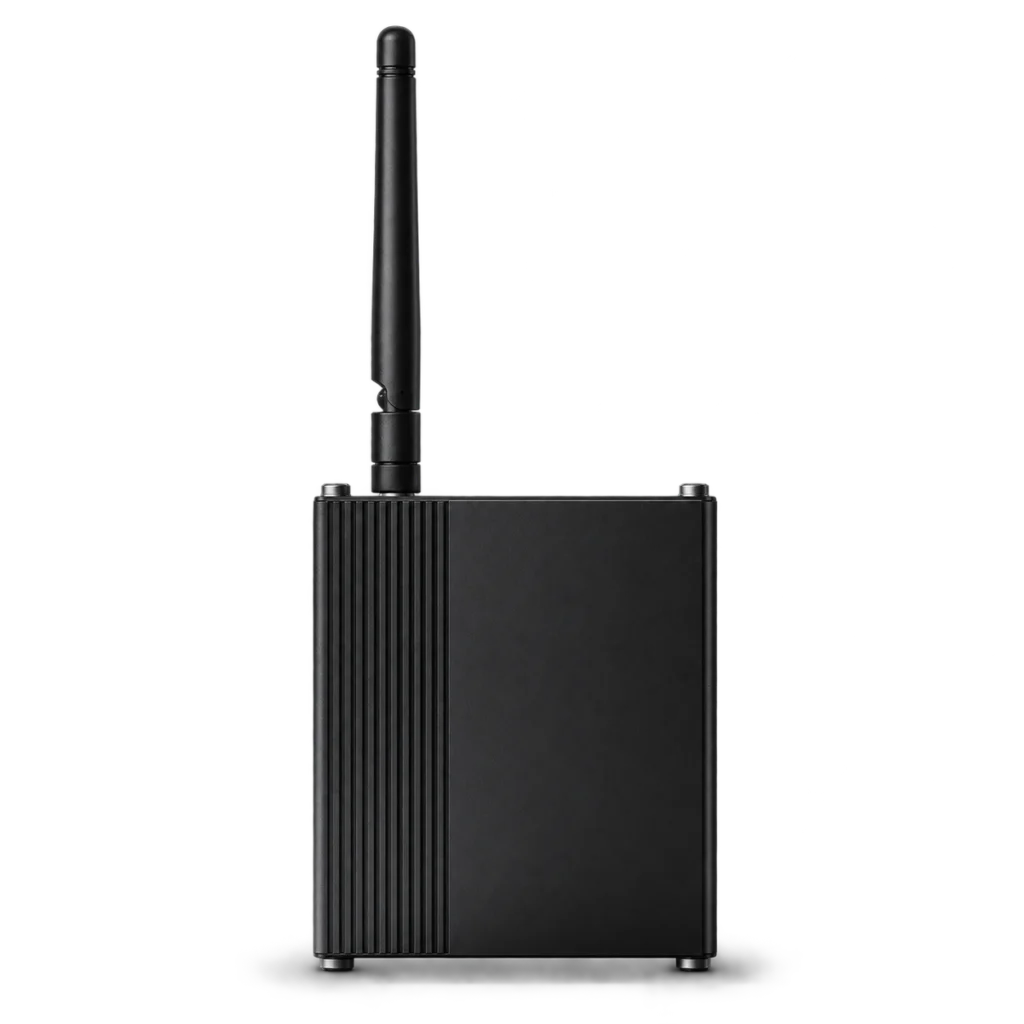

Milesight UC300 – LoRaWAN & 4G IoT Controller
Overview
Pengendali IoT multi-antarmuka yang membaca input digital, analog (4–20 mA, 0–10 V, PT100), dan serial (RS485/RS232 Modbus), lalu mengirim datanya lewat LoRaWAN atau 4G. Dilengkapi mesin aturan IF-THEN untuk otomasi lokal, bahkan saat jaringan terputus.
Fitur Utama
- 4 input digital dan 2 output relay (input dapat berfungsi sebagai pencacah pulsa)
- 4 input analog dan 2 input PT100 : 2 × 4–20 mA, 2 × 0–10 V, 2 × RTD
- RS485 (Modbus RTU) dan RS232
- Dua versi : LoRaWAN atau Cellular (4G)
- Mesin aturan IF-THEN hingga 16 aturan tetap berjalan lokal saat jaringan terputus
- Komunikasi langsung antarperangkat Milesight D2D tanpa gateway
- Pemasangan di meja, dinding, atau rel DIN
Sederhananya: perangkat ini cocok untuk menghubungkan sensor dan perangkat lama (Modbus, 4–20 mA, kontak kering) ke jaringan IoT atau BMS, sambil memberi kontrol ringan lewat relay.
Penerapan
Dipakai di mana, dan apa spesifikasinya.
Sistem
Application
Deskripsi
Tentang produk ini.
| Specification | Value |
|---|---|
| Data Interfaces | |
| Interface Type | 3.5 mm terminal block |
| Digital I/O | 4 × DI + 2 × DO |
| Digital Input | Opto-isolated, 3–24 VDC; digital input or pulse counter; ≤ 4000 Hz |
| Digital Output | SPDT relay, max 3 A @ DC 30 V or AC 250 V |
| Serial Port | 1 × RS232 (transparent) + 1 × RS485 (transparent, Modbus RTU); 1200–115200 bps |
| Analog Input | 2 × 4–20 mA + 2 × 0–10 V; 12-bit; ±5% (4–20 mA), ±1% (0–10 V) |
| RTD Input | 2 × PT100; 2- or 3-wire; 12-bit; -200 °C to 800 °C |
| LoRaWAN Version | |
| Protocol | LoRaWAN, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Antenna Connector | 1 × 50 Ω SMA (center pin: SMA female) |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class C |
| Cellular Version | |
| Network | 4G LTE (CAT 1) / WCDMA / GSM (differs by region) |
| SIM Slot | 1 × Micro SIM (3FF), 1.8 V / 3 V |
| Application Mode | TCP / UDP / MQTT / AWS / Milesight IoT Cloud / SMS |
| Software | |
| Configuration | USB Type-C or downlink |
| Advanced Features | Threshold alarm, data storage, data retrievability, data retransmission, Milesight D2D controller & agent, IF-THEN command |
| Physical Characteristics | |
| Power Supply | 5–24 VDC by terminal block, or 5 V by Type-C USB |
| Power Connector | 3.5 mm 2-pin terminal block with surge protection and reverse polarity protection |
| Operating Temperature | -20 °C to 60 °C |
| Relative Humidity | 0 to 95% (non-condensing) |
| Color & Material | Black, metal |
| Weight | 142.3 g |
| Dimension | 93 × 70 × 22 mm (antenna connector excluded) |
| Installation | Desktop, wall mounting, DIN rail mounting |
