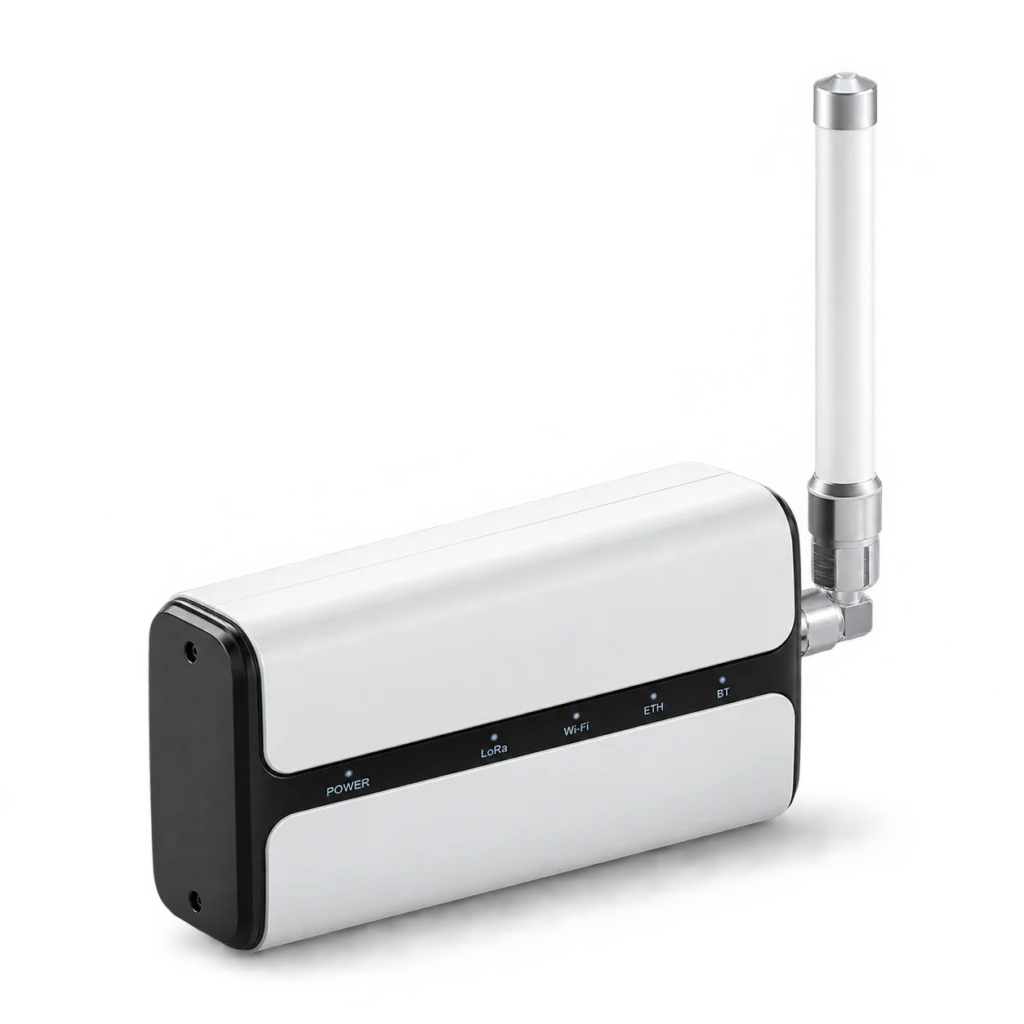

Milesight UG65 – Indoor LoRaWAN Gateway
Overview
Gateway LoRaWAN untuk jaringan IoT dalam gedung: 8 kanal, hingga 2.000 perangkat, dengan network server tertanam. Terhubung lewat Ethernet, Wi-Fi, atau seluler 4G, dan dapat menyalurkan data sensor ke BMS lewat BACnet atau Modbus.
Fitur Utama
- 8 kanal full-duplex dengan prosesor quad-core, RAM 512 MB, Semtech SX1302
- Hingga 2.000 perangkat dan jangkauan sampai 2 km di area urban
- LoRaWAN Class A/B/C serta SF5 & SF6 untuk transmisi lebih cepat
- Tiga jalur backhaul : Ethernet (PoE), Wi-Fi, dan 4G LTE opsional
- Integrasi BMS lewat BACnet/IP, BACnet/SC, Modbus TCP, MQTT, dan HTTP
- Network server tertanam dengan Gateway Fleet, multicast, dan FUOTA
- IP65 dengan pemasangan meja, dinding, atau tiang
- Node-RED dan Python SDK untuk pengembangan kustom
Sederhananya: perangkat ini cocok untuk menjadi jembatan antara sensor nirkabel LoRaWAN dan sistem gedung, tanpa menarik kabel ke tiap sensor.
Penerapan
Dipakai di mana, dan apa spesifikasinya.
Sistem
Application
Deskripsi
Tentang produk ini.
| Specification | Value |
|---|---|
| Hardware System | |
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN | |
| Antenna | 1 × 50 Ω N-female external connector |
| Channel | 8 (half/full-duplex) |
| Frequency Band | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140 dBm @292bps |
| Tx Power | 27 dBm max |
| Protocol | V1.0 and V1.0.2 Class A/B/C |
| Network Interfaces | |
| Ethernet | 1 × RJ45 WAN port (PoE PD supported); 10/100/1000 Mbps; isolation 1.5 kV RMS |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4 GHz; internal antenna |
| Cellular (optional) | 4G LTE; 1 × mini SIM (2FF) |
| USB | 1 × Type-C for power supply and console |
| Software | |
| Integration | MQTT(S), HTTP(S), BACnet/IP, BACnet/SC, Modbus TCP, Modbus RTU over TCP |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, etc. |
| VPN Tunnel | OpenVPN, IPsec, PPTP, L2TP, GRE, DMVPN, WireGuard |
| Management | Web, CLI (SSH/Telnet), SNMP, HTTP API, MQTT API, Milesight Development Platform, DeviceHub |
| Power & Physical | |
| Power Input | DC 9–24 V by power connector, 802.3af PoE, or 5 V / 1 A via Type-C |
| Power Consumption | Typical 2.9 W, max 4.2 W |
| Ingress Protection | IP65 |
| Weight | 548 g |
| Dimension | 180 × 110 × 55.5 mm |
| Installation | Desktop, wall, or pole mounting |
| Operating Temperature | -40 °C to +70 °C (reduced cellular performance above 60 °C) |
| Relative Humidity | 0% to 95% (non-condensing) at 25 °C |
| Approvals | CE, CE (RED), FCC, IC, Telec, JATE, RCM, RoHS |
