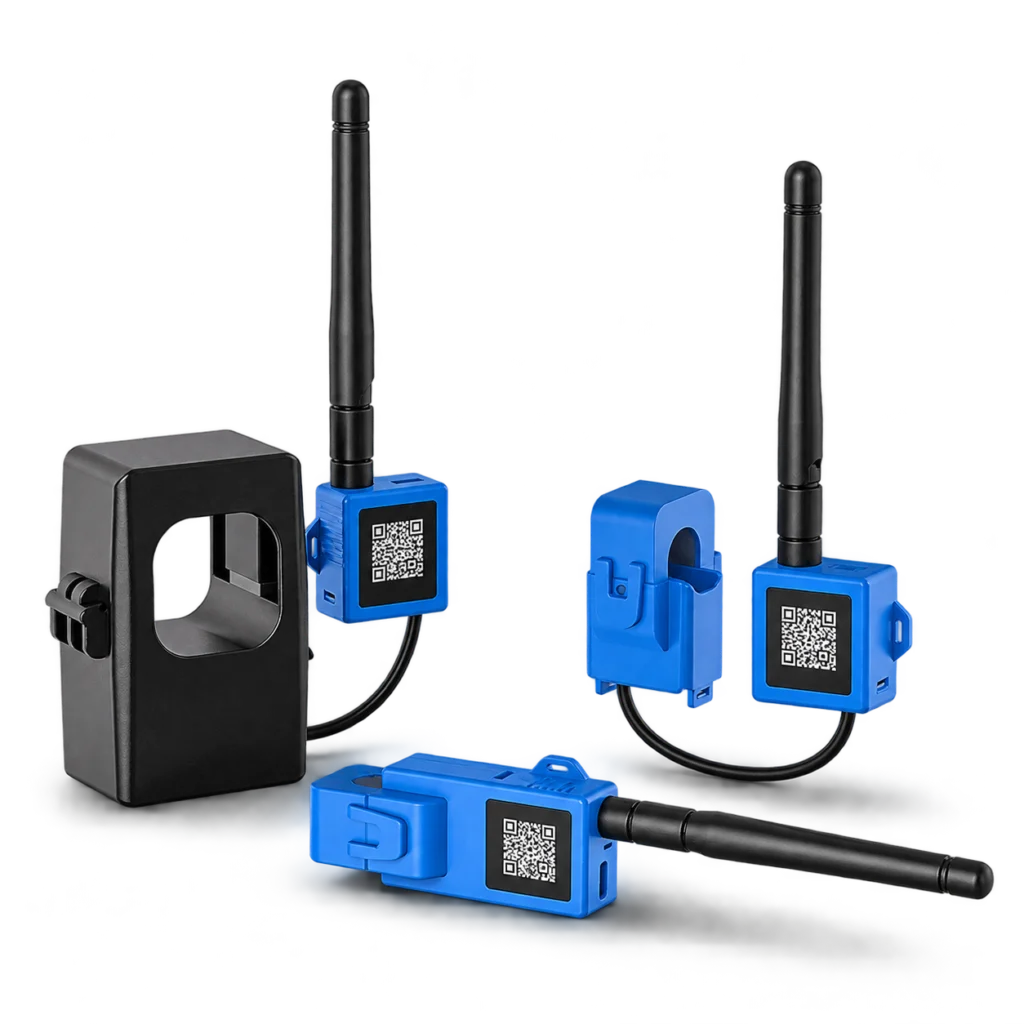

Milesight CT101 – Smart Current Transformer (LoRaWAN, CT10x Series)
Overview
Trafo arus pintar nirkabel berdesain split-core yang dapat dilepas, dipasang menjepit pada kabel tanpa memutus sirkuit. Menghasilkan daya dari arus kabel yang diukur, sehingga tanpa baterai. CT101 mengukur sampai 100 A; seri CT10x juga mencakup CT103 (250 A) dan CT105 (500 A).
Fitur Utama
- Dipasang tanpa mematikan sirkuit dan tanpa mengubah kabel
- Tanpa baterai : daya dari arus yang diukur; arus minimum pelaporan 1,4–1,5 A
- Pengambilan sampel 3,3 kHz menangkap lonjakan arus singkat
- Pelaporan energi kumulatif (Ah, atau kWh bila tegangan dan faktor daya diatur)
- Empat jenis alarm : arus, over-current, suhu, dan tegangan rendah
- Sensor suhu kabel eksternal dan antena dapat dipilih (termasuk magnetik untuk panel logam)
- Modul nirkabel terpisah supaya sinyal tidak terhalang panel logam
- Pembaruan jarak jauh (FUOTA) dan integrasi BMS lewat gateway
Sederhananya: perangkat ini cocok untuk memantau arus per sirkuit (AC, pompa, penerangan, panel distribusi) tanpa menghentikan operasional.
Penerapan
Dipakai di mana, dan apa spesifikasinya.
Sistem
Application
Deskripsi
Tentang produk ini.
| Specification | Value |
|---|---|
| Electrical Measurement (CT101) | |
| Detection Parameter | RMS current |
| Sampling Frequency | 3.3 kHz |
| Working Frequency | 50–60 Hz |
| Rated Primary Current | 100 Arms |
| Rated Secondary Current | 100 mArms |
| Minimum Reporting Current | 1.5 Arms (1 min interval); 1.4 Arms (10 min interval) |
| Accuracy | ±1% (>5 Arms), ±3% (≤5 Arms) |
| Resolution | 1 mA |
| Temperature Sensor | NTC; -20 °C to 100 °C; ±1% |
| Wireless Transmission | |
| Protocol | LoRaWAN |
| Antenna Connector | 1 × 50 Ω SMA (center pin: SMA female) |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm |
| Mode | OTAA/ABP Class A |
| Interface & Software | |
| Port | 1 × USB Type-C for power supply, configuration, console, or cable temperature sensor |
| Configuration | USB Type-C or downlink |
| Advanced Features | Threshold alarm, overrange alarm, FUOTA |
| Physical Characteristics | |
| Power Supply | Induced current from the conductor, or 5 V via USB Type-C |
| Insulation Voltage | 2.5 kVac (r.m.s) (1 mA / 1 min) |
| Color & Material | Blue, PBT + PC (UL94 V0) |
| Extension Cable Length | 1 m |
| Operating Temperature | -20 °C to 70 °C |
| Relative Humidity | ≤ 95% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 86.5 × 31 × 37.4 mm; wire hole Ø 16 mm |
| Weight | 85.65 g |
| Installation | Transceiver: cable-tie mounting; CT clamp: suspended on the tested conductor |
| Approvals | CE, FCC, UL508 |
